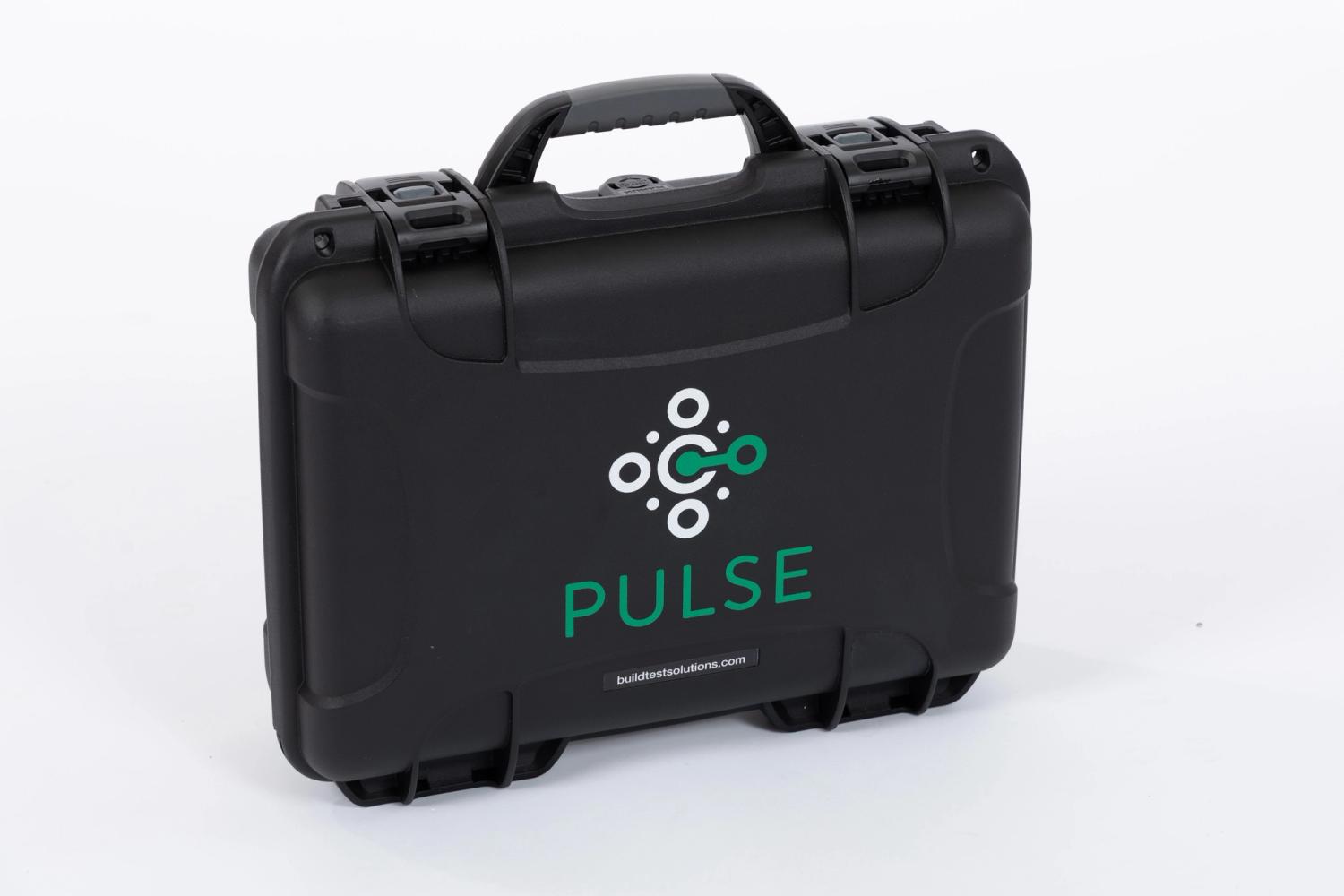

Pulse 3.0 controller

The controller is the central hub of the Pulse system. It encompasses electronics, a touchscreen display, and user-friendly software to manage and operate the connected air receivers, as well as control the compressor operation. It also incorporates various sensors for measuring internal room temperature and atmospheric pressure which are used in the calculation of the air leakage result. Pulse controller features

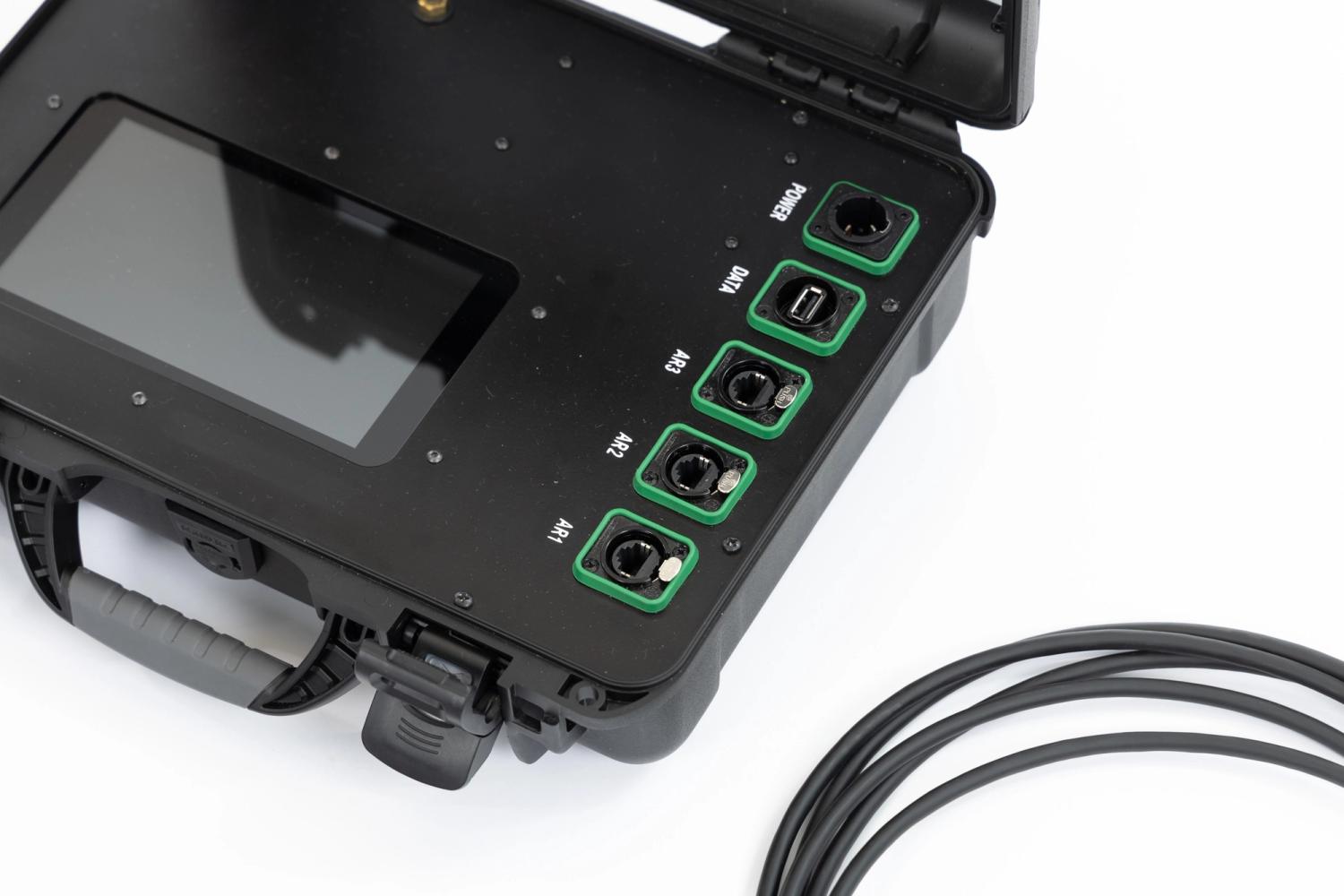

Features

Touchscreen LCD
Air pressure sensor
Temperature sensor
LED status light
Main power inlet
USB-A data socket
Ethernet ports for connecting air receivers (x3)

Technical specification


Model Number	PUL-V3-CON
Input power supply	80-264 VAC 50-60 Hz
Maximum power consumption	129 W
Screen interface	7” capacitive touchscreen LCD
I/O ports	- 1 x USB 2.0 Type A (female socket) - 3 x RJ45 Gigabit PoE+ (802.3af, 802.3at)
Wireless communications	- Wi-Fi 2.4 GHz / 5.0 GHz (802.11ac) - Bluetooth 5.0, BLE
Storage	16 GB eMMC flash memory
Operating temperature	4 - 40 °C
External dimensions	363 (L) x 282 (W) x 120 (H) mm
Nominal weight	3.4 kg
Supplied cables	- 1 x Neutrik powerCON® to UK Plug (Type G, 13 A) power cord (3 m)
