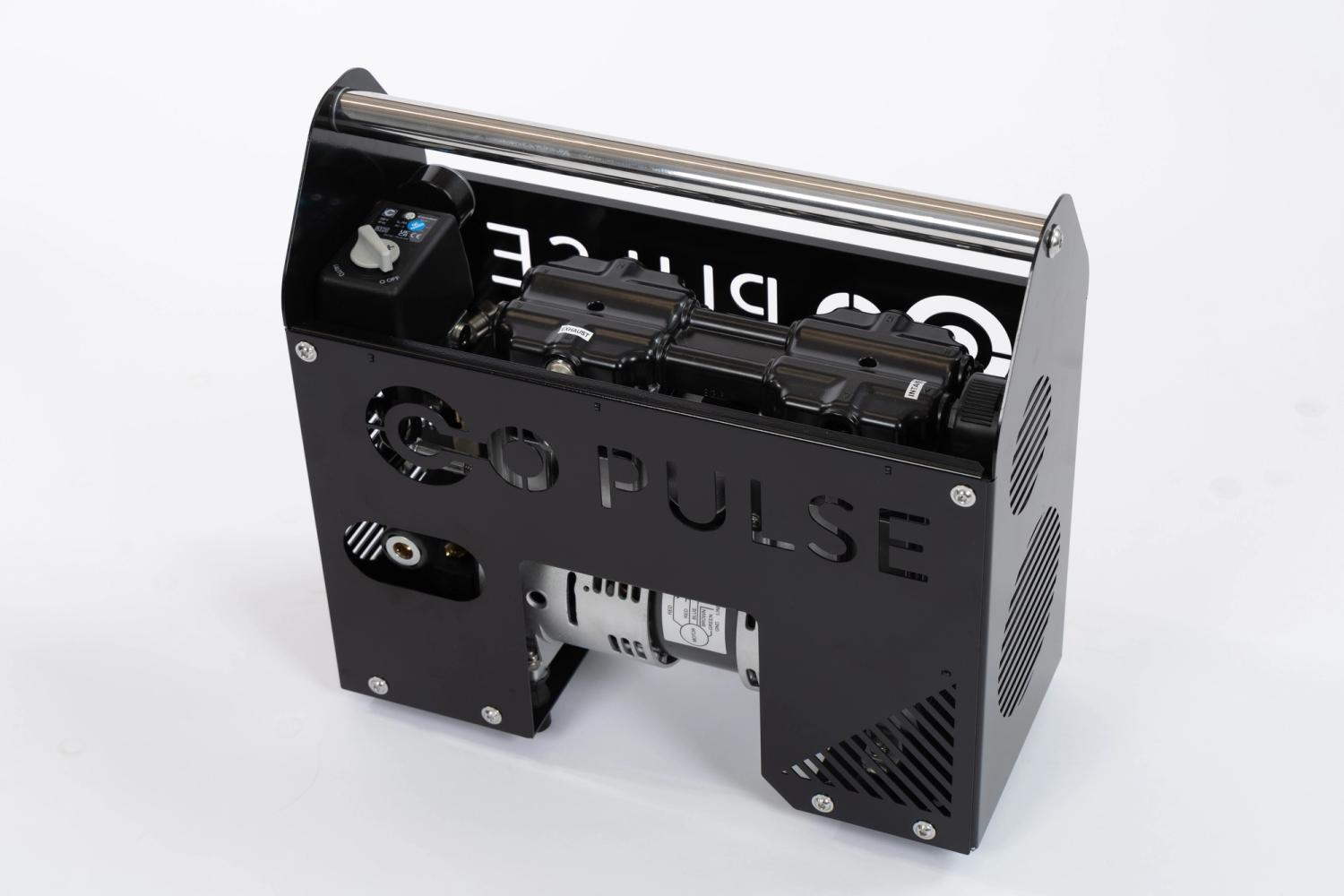

The compressor is an oil-free piston pump compressor used to fill the air receivers pressure vessel with air. It is designed to be small and portable while still being able to pressurise an air receiver in a short period of time.
The compressor will charge air receivers to a maximum pressure of 10 bar via the included compressed air hose. Charging of the air receiver may take place onsite within the building or enclosure under test, onsite but outside the space to be tested (e.g. to minimise disruption or the time in the property) or if air receivers are suitably secured, it is also possible to charge air receivers in transit via a suitably configured vehicle mounted compressor.
Features
- Mains power inlet (on side)
- Air hose connector
- On/off switch (on top) and pressure gauge (behind)
- Air inlet filter
Technical specification
| Model Number | PUL-COMP-230V | PUL-COMP-110V |
| Input power supply | 220-240 VAC 50 Hz | 110-120 VAC 60 Hz |
| Maximum power consumption | 580 W, 2.6 A | 540 W, 4.9 A |
| Operating temperature | 10 - 40 °C | 50 - 104 °F |
| Noise level | 80 dB at 1 m | 85 dB at 1 m |
| External dimensions | 390 (L) x 180 (W) x 385 (H) mm | 390 (L) x 180 (W) x 385 (H) mm |
| Nominal weight | 16.2 kg | 15.6 kg |
| Supplied cables | - 1 x IEC C13 to UK Plug (Type G, 13 A) power cord (2 m) - 1 x quick-release compressed air hose (2 m) | - 1 x IEC C13 to USA Plug (Type B, grounded) power cord (2 m) - 1 x quick-release compressed air hose (2 m) |
Country specific power cords are available on request.
