Pulse 3.0 air receiver
Pulse 3.0 air receiver portsPulse 3.0 air receiver carry straps
Air receivers are used to store air in preparation for carrying out a test. They combine a pressure vessel with pneumatic valves and electronics. When performing an air leakage test, the stored air is released in a short burst, which increases the pressure within the building or test enclosure, allowing the air leakage rate to be measured. Pulse air receiver features

​

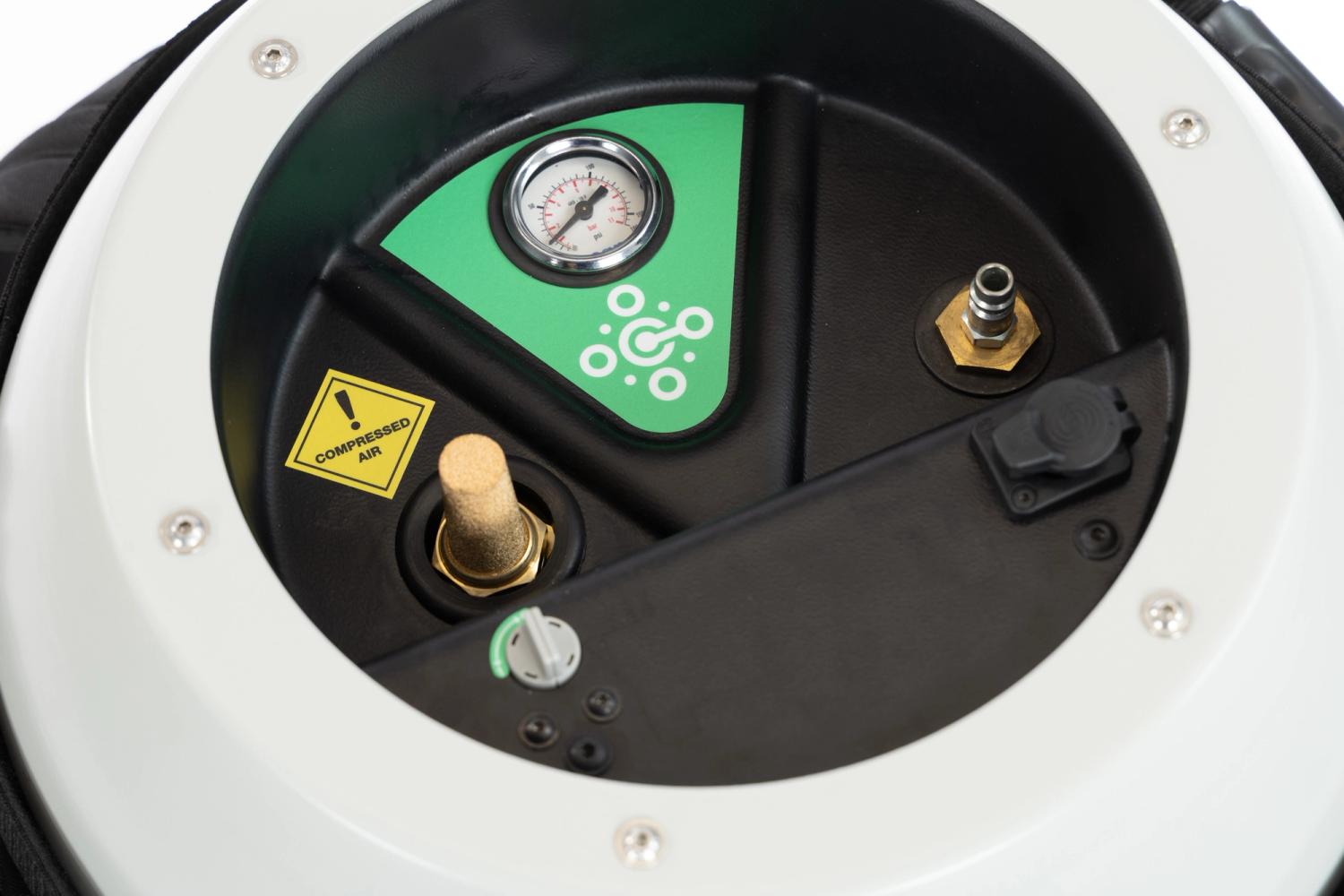

Features

  1. Drain valve switch
  2. Air release nozzle
  3. Tank pressure gauge
  4. Air hose connector
  5. Ethernet port (with dust cover) for connection to controller

​
Technical specification

Model NumberPUL-V3-AR
Input power supply44-57 VDC PoE+ (802.3at)
Maximum power consumption30 W
Air reservoir capacity39.8 L
Maximum operating pressure10 bar / 145 psi
Operating temperature4 - 40 °C
Noise level108 dB at 1 m
External dimensions381 (D) x 824 (H) mm
Nominal weight13.0 kg
Supplied cables- 1 x Neutrik etherFLEX® Cat5e RJ45 cable assembly (4 m)
Class III electrical appliance
UK Conformity Assessed
CE mark
Waste Electrical and Electronic Equipment Directive (WEEE Directive)
